HV 45kw-160kw

HV 45kw-160kw

◆ The essence of permanent magnet high efficiency frequency conversion is to control the rotation of motor space magnetic field.

◆ The stator windings generate a rotating magnetic field synchronized with the frequency of the power supply through a three-phase alternating current.

◆ The basic composition of permanent magnet synchronous motor: stator winding, rotor, body.

◆ The rotor is a permanent magnet made of permanent magnetic material that begins to spin under the action of a rotating magnetic field generated by the stator windings.


-1_0004_IMG_4068
-1_0006_IMG_4199
-1_0005_IMG_4200
-1_0000_IMG_4196
-1_0001_IMG_4096
-1_0003_IMG_4084
-1_0002_IMG_4095
-1_0004_IMG_4068
-1_0006_IMG_4199
-1_0005_IMG_4200
-1_0000_IMG_4196
-1_0001_IMG_4096
-1_0003_IMG_4084
-1_0002_IMG_4095

Product Details

Features

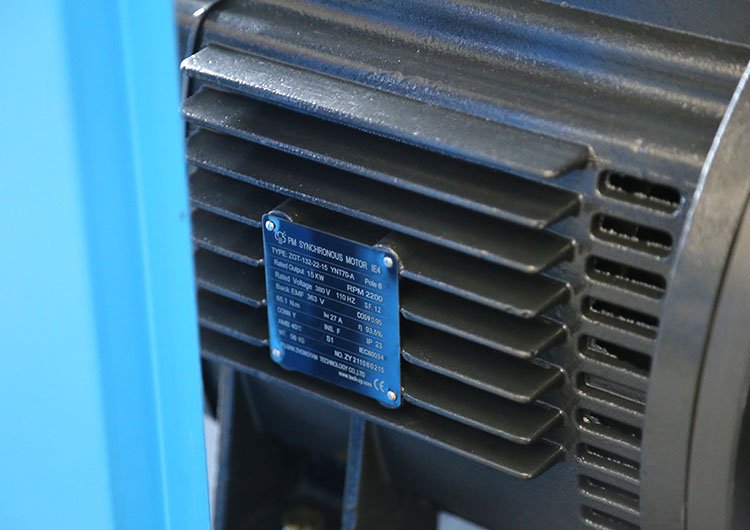

◆ Energy-saving permanent magnet synchronous motor with high efficiency and energy saving is adopted.In view of the wide adjustment range of permanent magnet frequency conversion, new profile and exhaust port structure are applied to bring lower pressure drop and higher energy efficiency.

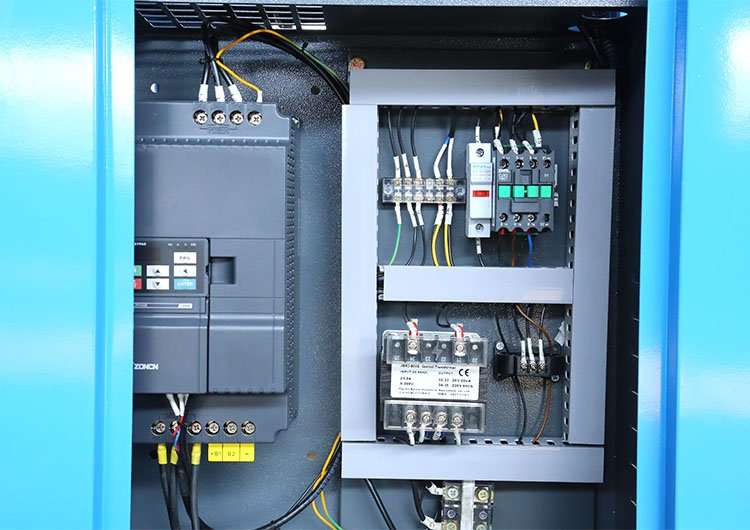

◆ The use of cost-effective frequency converter, vector frequency conversion technology, the permanent magnet frequency conversion screw machine has small impact force, stable air supply pressure, can adapt to the power grid voltage, because of which greatly reduce the failure rate of equipment.

◆ Intelligent and efficient intelligent control system can continuously and accurately monitor the operation of air compressor,and real-time feedback information, but also to achieve multiple host linkage and remote control.

◆ Longer life advanced air valve design, intake adjustment range of 0-100%, regulating valve adjustment, small pressure loss, stable action,longer life.

◆ Large capacity and large capacity oil separator, superior quality oil separation original gas, liquid filter elements, with advanced three oil and gas separation, oil content control is more flexible, to ensure the high quality of compressed air.


ModelHV-45GHV-55GHV-75GHV-90GHV-110GHV-132GHV-160G
Air Flow/
Working Pressure
M³/Min/MPa7.7/0.89.5/0.812.6/0.816.0/0.820.0/0.823.1/0.827.0/0.8
7.0/1.08.5/1.011.8/1.013.8/1.017.3/1.020.1/1.025.0/1.0
5.8/1.37.1/1.39.8/1.312.4/1.314.8/1.318.1/1.322.5/1.3
Compressed seriesSingle Stage
The environment temperature﹣5℃-+45℃
Cooling wayAir cooling
Exhaust
temperature
55℃
NoisedB(A)63±273±273±275±285±2
Drive wayDirict Drive
Power supplyD/PH/HZ380V/50HZ,220V/50HZ,220V/60HZ,415V,Custom Voltage
Rate of workKW45557590110132160
Starting wayY-▲start
Dimension(mm)Length134015601700170020002400
Width93011001170117014501500
Highly120014501540154018301970
WeightKG730112012301280180020003900
Outlet pipe diameterimch/mm1 1/2″2″2″2-1/2″DN80
